FreeIPA 服务器

使用 Let's Encrypt SSL 证书保护 FreeIPA 服务器

基础设置

安装 FreeIPA 服务器后，通过以管理员用户身份获取 Kerberos 票证来确认它正在工作：

$ sudo kinit admin
Password for admin@COMPUTINGFORGEEKS.COM:

$ sudo klist
Ticket cache: KCM:0
Default principal: admin@COMPUTINGFORGEEKS.COM

Valid starting       Expires              Service principal
08/02/2021 17:42:38  08/03/2021 17:42:31  krbtgt/COMPUTINGFORGEEKS.COM@COMPUTINGFORGEEKS.COM

安装 EPEL 存储库和 Cerbot

在基于 RHEL 的系统上，Certbot 包在 EPEL 存储库中可用。Certbot 旨在用于获取 Let's Encrypt 证书，然后继续更新站点的 HTTPS 证书。

使用以下命令安装epel-release ：

$ sudo yum install epel-release
Last metadata expiration check: 1 day, 15:05:30 ago on Tue 27 Jul 2021 10:11:28 PM EAT.
Dependencies resolved.
==================================================================================================================================================================
 Package                                   Architecture                        Version                                  Repository                           Size
==================================================================================================================================================================
Installing:
 epel-release                              noarch                              8-10.el8                                 extras                               22 k

Transaction Summary
==================================================================================================================================================================
Install  1 Package

Total download size: 22 k
Installed size: 32 k
Is this ok [y/N]: y
Downloading Packages:
epel-release-8-10.el8.noarch.rpm                                                                                                  182 kB/s |  22 kB     00:00
------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                                              67 kB/s |  22 kB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                                                                          1/1
  Installing       : epel-release-8-10.el8.noarch                                                                                                             1/1
  Running scriptlet: epel-release-8-10.el8.noarch                                                                                                             1/1
  Verifying        : epel-release-8-10.el8.noarch                                                                                                             1/1

Installed:
  epel-release-8-10.el8.noarch

Complete!

之后使用以下命令安装 certbot：

sudo yum install certbot python3-certbot-apache
Last metadata expiration check: 0:10:00 ago on Thu 29 Jul 2021 01:17:18 PM EAT.
Dependencies resolved.
==================================================================================================================================================================
 Package                                           Architecture                   Version                                 Repository                         Size
==================================================================================================================================================================
Installing:
 certbot                                           noarch                         1.14.0-1.el8                            epel                               51 k
 python3-certbot-apache                            noarch                         1.14.0-1.el8                            epel                              143 k
Installing dependencies:
 python3-acme                                      noarch                         1.14.0-1.el8                            epel                               88 k
 python3-certbot                                   noarch                         1.14.0-1.el8                            epel                              391 k
 python3-configargparse                            noarch                         0.14.0-6.el8                            epel                               36 k
 python3-josepy                                    noarch                         1.8.0-1.el8                             epel                              102 k
 python3-parsedatetime                             noarch                         2.5-1.el8                               epel                               79 k
 python3-pyOpenSSL                                 noarch                         19.0.0-1.el8                            appstream                         102 k
 python3-pyrfc3339                                 noarch                         1.1-1.el8                               epel                               19 k
 python3-requests-toolbelt                         noarch                         0.9.1-4.el8                             epel                               91 k
 python3-zope-component                            noarch                         4.3.0-8.el8                             epel                              313 k
 python3-zope-event                                noarch                         4.2.0-12.el8                            epel                              210 k
 python3-zope-interface                            x86_64                         4.6.0-1.el8                             epel                              158 k
Installing weak dependencies:
 python-josepy-doc                                 noarch                         1.8.0-1.el8                             epel                               22 k

Transaction Summary
==================================================================================================================================================================
Install  14 Packages

Total download size: 1.8 M
Installed size: 6.9 M
Is this ok [y/N]: y

确认 certbot 工具安装成功：

$ certbot --version
certbot 1.14.0

申请证书

使用 Let's Encrypt SSL 证书保护 FreeIPA 服务器

我们将请求 Let's Encrypt SSL 证书，而不是使用服务器的自签名证书。

在继续之前备份当前的 FreeIPA 服务器私钥和证书：

sudo cp -r /var/lib/ipa/certs{,.bak}
sudo cp -r /var/lib/ipa/private{,.bak}

安装 git、vim 或 nano 文件编辑器

sudo yum -y install vim nano

方法 1：使用手动方法使用 Let's Encrypt 保护 FreeIPA 服务器

请按照以下步骤操作。

下载并安装 Let's Encrypt CA 证书

创建证书目录：

sudo su -
mkdir freeipa-certs
cd freeipa-certs

下载 Let's Encrypt CA 证书：

CERTS=("isrgrootx1.pem" "isrg-root-x2.pem" "lets-encrypt-r3.pem" "lets-encrypt-e1.pem" "lets-encrypt-r4.pem" "lets-encrypt-e2.pem")
for CERT in "${CERTS[@]}"
do
  curl -o $CERT "https://letsencrypt.org/certs/$CERT"
done

将 Let's Encrypt CA 证书安装到 FreeIPA 证书存储中：

CERTS=("isrgrootx1.pem" "isrg-root-x2.pem" "lets-encrypt-r3.pem" "lets-encrypt-e1.pem" "lets-encrypt-r4.pem" "lets-encrypt-e2.pem")
for CERT in "${CERTS[@]}"
do
  ipa-cacert-manage install $CERT
done

预期的命令输出：

Installing CA certificate, please wait
Verified CN=ISRG Root X1,O=Internet Security Research Group,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
Installing CA certificate, please wait
Verified CN=ISRG Root X2,O=Internet Security Research Group,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
Installing CA certificate, please wait
Verified CN=R3,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
Installing CA certificate, please wait
Verified CN=E1,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
Installing CA certificate, please wait
Verified CN=R4,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
Installing CA certificate, please wait
Verified CN=E2,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful

使用来自服务器的证书更新本地 IPA 证书数据库：

$ sudo ipa-certupdate
Systemwide CA database updated.
Systemwide CA database updated.
The ipa-certupdate command was successful
获取 Let's Encrypt 证书

停止 httpd 服务以释放获取证书所需的端口80 。

sudo systemctl stop httpd

然后运行 ​​Certbot 获取 Let's Encrypt 证书：

EMAIL="your-email-address"
DOMAIN="idm.example.com"
sudo certbot certonly --standalone --preferred-challenges http --agree-tos -n -d $DOMAIN -m $EMAIL

确保生成证书的命令成功：

Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator apache, Installer apache
Requesting a certificate for idm.example.com
Performing the following challenges:
http-01 challenge for idm.example.com
Waiting for verification...
Cleaning up challenges

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at:
   /etc/letsencrypt/live/idm.example.com/fullchain.pem
   Your key file has been saved at:
   /etc/letsencrypt/live/idm.example.com/privkey.pem
   Your certificate will expire on 2021-10-27. To obtain a new or
   tweaked version of this certificate in the future, simply run
   certbot again. To non-interactively renew *all* of your
   certificates, run "certbot renew"
 - If you like Certbot, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

您的证书应存储在/etc/letsencrypt/live/idm.example.com目录中：

$ ls /etc/letsencrypt/live/idm.example.com
cert.pem  chain.pem  fullchain.pem  privkey.pem  README

确认生成所需的证书后启动 httpd 服务器：

sudo systemctl restart httpd

添加 Let's Encrypt SSL 证书以在 FreeIPA Web UI 中使用：

DOMAIN="idm.example.com" # Set correct IdM hostname
sudo ipa-server-certinstall -w -d /etc/letsencrypt/live/$DOMAIN/privkey.pem /etc/letsencrypt/live/$DOMAIN/cert.pem --pin=''

命令执行输出：

Directory Manager password:

Please restart ipa services after installing certificate (ipactl restart)
The ipa-server-certinstall command was successful

重启 FreeIPA 服务

$ sudo ipactl restart
Restarting Directory Service
Restarting krb5kdc Service
Restarting kadmin Service
Restarting httpd Service
Restarting ipa-custodia Service
Restarting pki-tomcatd Service
Restarting ipa-otpd Service
ipa: INFO: The ipactl command was successful

可以从终端或网络浏览器确认当前使用的 SSL 证书。

使用 OpenSSL：

$ openssl s_client -showcerts -verify 5 -connect $(hostname -f):443
verify depth is 5
CONNECTED(00000003)
depth=2 C = US, O = Internet Security Research Group, CN = ISRG Root X1
verify return:1
depth=1 C = US, O = Let's Encrypt, CN = R3
verify return:1
depth=0 CN = idm.example.com
verify return:1
---
Certificate chain
 0 s:CN = idm.example.com
   i:C = US, O = Let's Encrypt, CN = R3
-----BEGIN CERTIFICATE-----

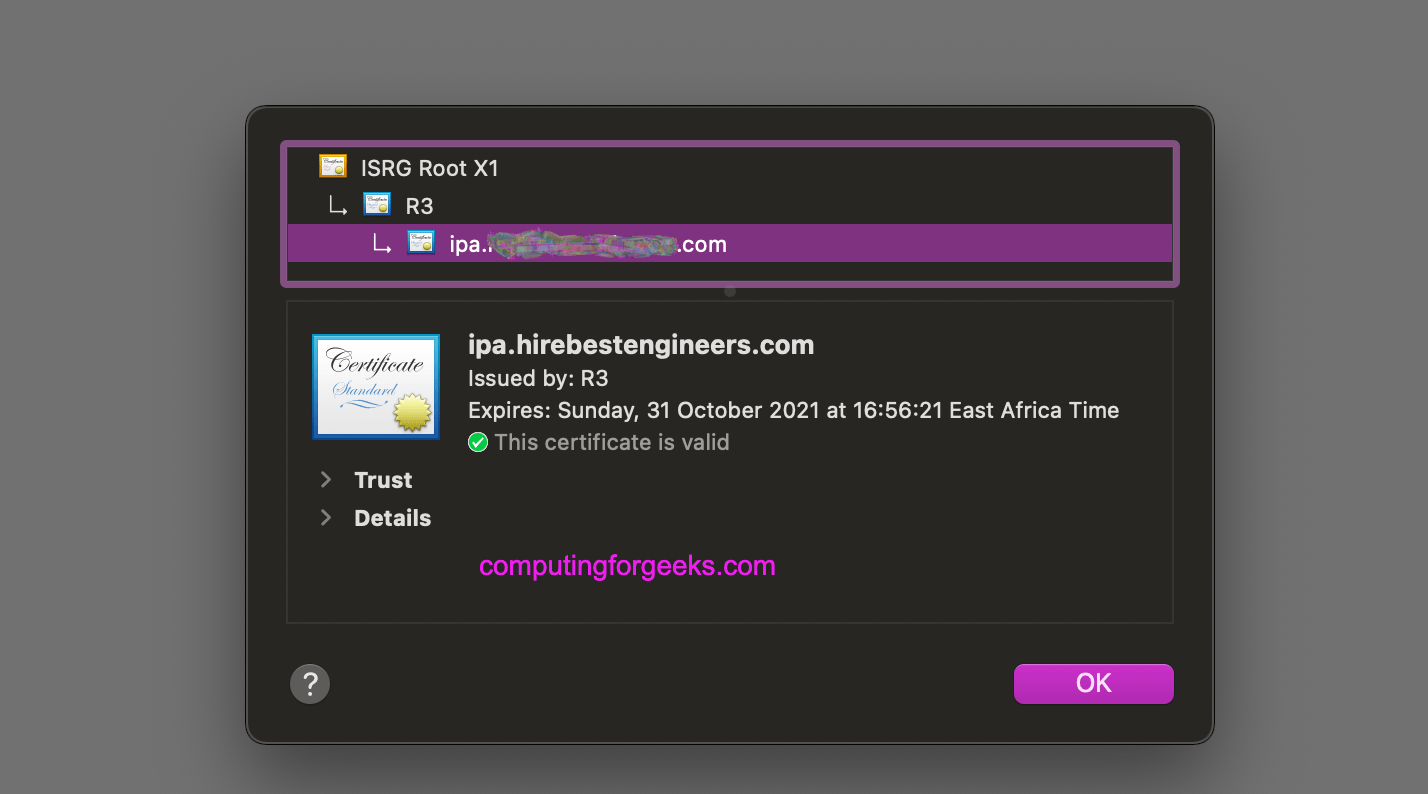

从 Web 控制台：


方法 2：使用 bash 脚本通过 Let's Encrypt 保护 FreeIPA 服务器

如果您的偏好是自动安装 Let's Encrypt 证书，则从 github克隆官方FreeIPA Let's Encrypt 管理脚本代码：

$ git clone https://github.com/freeipa/freeipa-letsencrypt.git
Cloning into 'freeipa-letsencrypt'...
remote: Enumerating objects: 71, done.
remote: Counting objects: 100% (23/23), done.
remote: Compressing objects: 100% (19/19), done.
remote: Total 71 (delta 6), reused 13 (delta 4), pack-reused 48
Unpacking objects: 100% (71/71), 18.71 KiB | 299.00 KiB/s, done.

切换到创建的目录：

cd freeipa-letsencrypt

编辑 renew-le.sh 脚本并设置EMAIL变量：

$ vim renew-le.sh
EMAIL="input-your-email-address"

在 setup-le.sh 脚本中，FreeIPA 服务器 FQDN 设置为服务器的主机名：

FQDN=$(hostname -f)

确保以下命令将主机名作为 FQDN 返回：

$ hostname -f
idm.example.com

运行setup-le.sh脚本来准备机器：

sudo bash setup-le.sh

该脚本将执行以下操作：

  • 将 Let's Encrypt CA 证书安装到 FreeIPA 证书存储中
  • 为 FreeIPA 网页界面申请新证书

命令执行输出示例：

...
Installing CA certificate, please wait
Verified CN=R4,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful
--2021-07-29 14:46:06--  https://letsencrypt.org/certs/lets-encrypt-e2.pem
Resolving letsencrypt.org (letsencrypt.org)... 34.194.149.67, 68.183.23.220, 2a05:d014:275:cb01:8909:43f0:2069:7b77, ...
Connecting to letsencrypt.org (letsencrypt.org)|34.194.149.67|:443... connected.
GnuTLS: Resource temporarily unavailable, try again.
GnuTLS: Resource temporarily unavailable, try again.
GnuTLS: Resource temporarily unavailable, try again.
HTTP request sent, awaiting response... 200 OK
Length: 1021 [application/x-pem-file]
Saving to: ‘/etc/ssl/idm.example.com/lets-encrypt-e2.pem’

/etc/ssl/idm.example.com/lets- 100%[================================================================================>]    1021  --.-KB/s    in 0s

2021-07-29 14:46:06 (13.3 MB/s) - ‘/etc/ssl/idm.example.com/lets-encrypt-e2.pem’ saved [1021/1021]

Installing CA certificate, please wait
Verified CN=E2,O=Let's Encrypt,C=US
CA certificate successfully installed
The ipa-cacert-manage command was successful

重启httpd服务：

sudo systemctl restart httpd

确认ipa-certupdate命令执行成功：

$ sudo ipa-certupdate
Systemwide CA database updated.
Systemwide CA database updated.
The ipa-certupdate command was successful

续订证书

续订 FreeIPA Let's Encrypt 证书

每当更新 SSL 证书时，运行以下命令以在 FreeIPA 端更新：s

DOMAIN="idm.example.com" # Set correct IdM hostname
sudo ipa-server-certinstall -w -d /etc/letsencrypt/live/$DOMAIN/privkey.pem /etc/letsencrypt/live/$DOMAIN/cert.pem --pin=''

根据需要输入目录管理员密码：

Directory Manager password:
The ipa-server-certinstall command was successful

然后在安装证书后继续重启 FreeIPA 服务：

sudo ipactl restart

然后，您应该在 FreeIPA 服务器设置上使用 Let's Encrypt SSL。访问 FreeIPA 网络仪表板时浏览器上的 SSL 警告应该消失。
